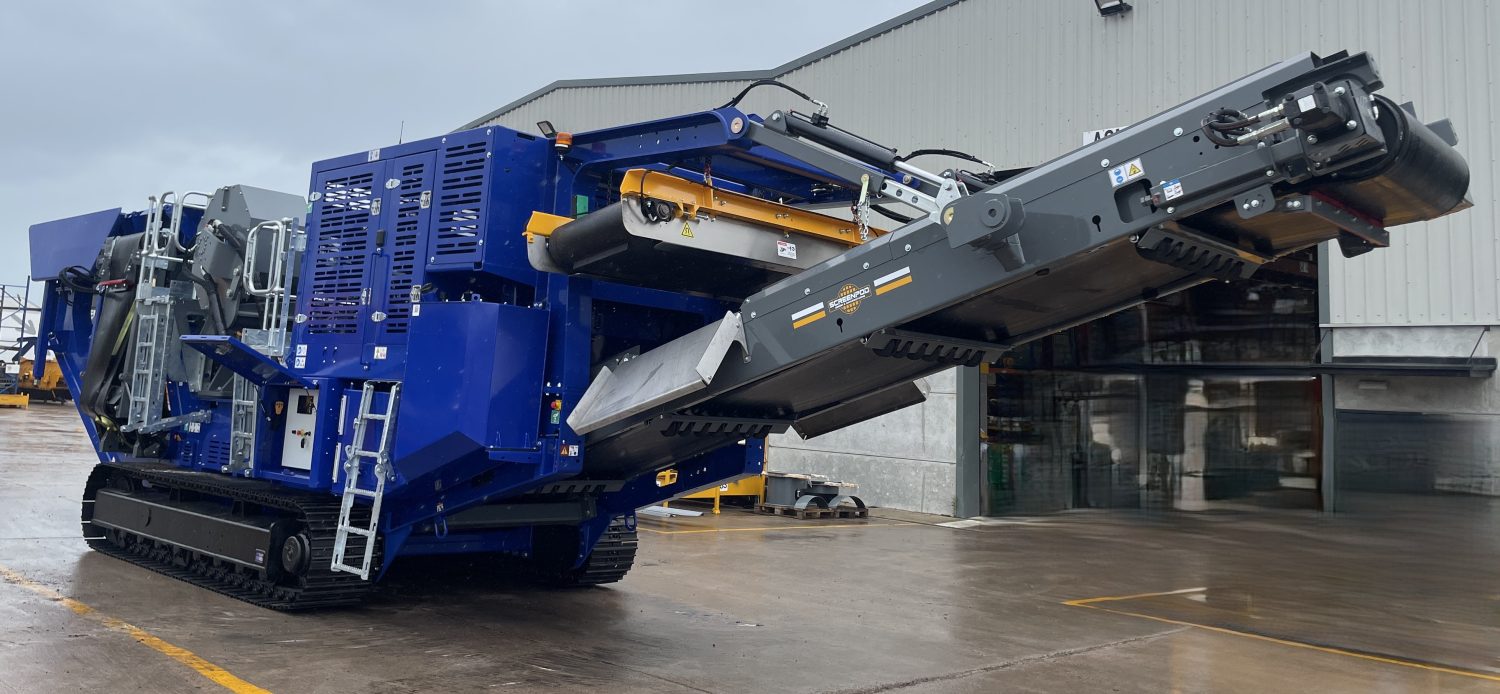

Screenpod 1200J Jaw Crusher

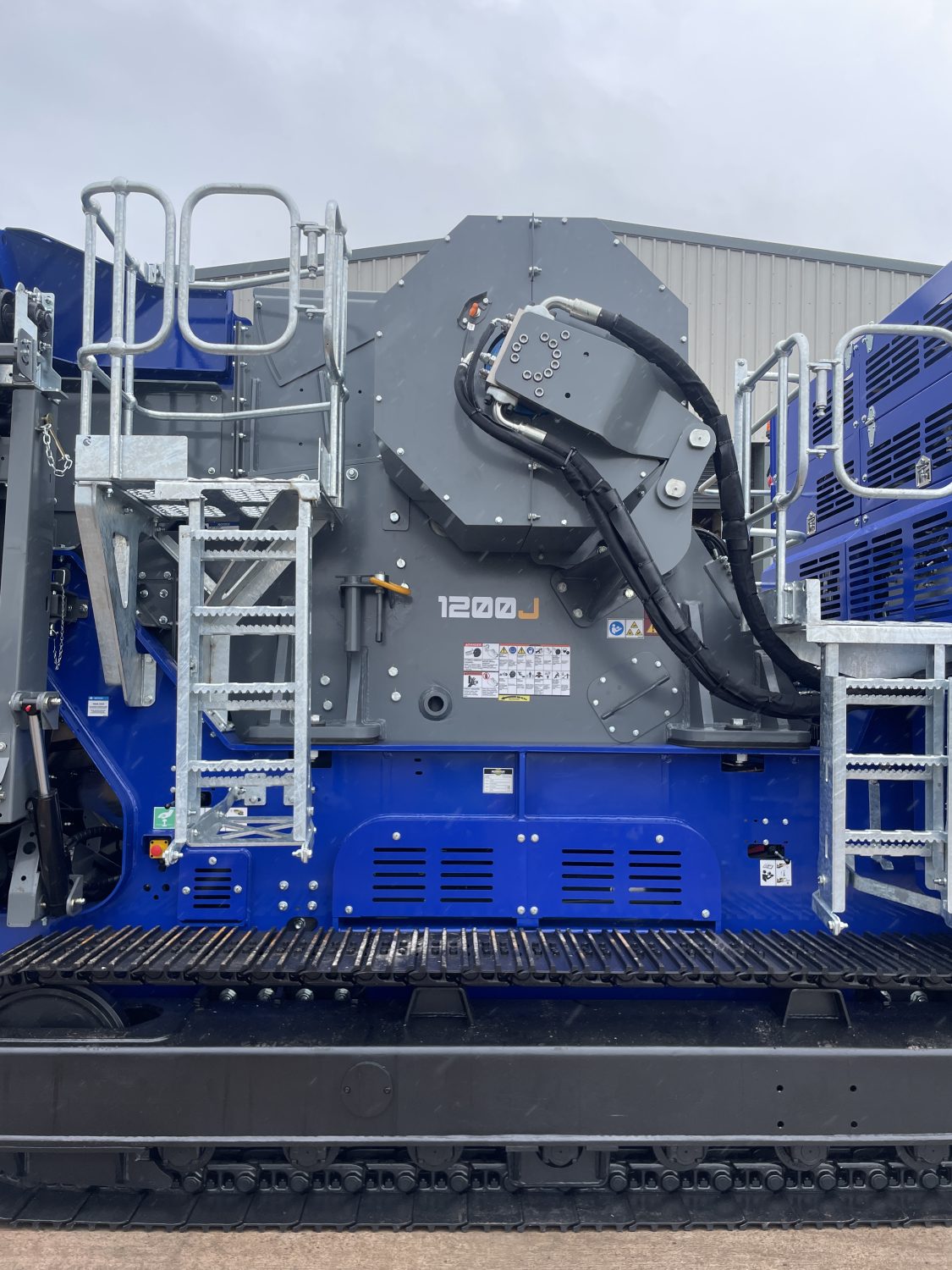

The Screenpod 1200J Tracked Jaw Crusher is a heavy-duty, high-production jaw crusher designed for demanding quarrying, recycling and material processing applications. Featuring a McLanahan 1100 x 700mm jaw chamber, hydraulic toggle and tensioning system, and an adjustable 50–190mm CSS range, the 1200J can be configured to efficiently process a wide range of hard and abrasive materials.

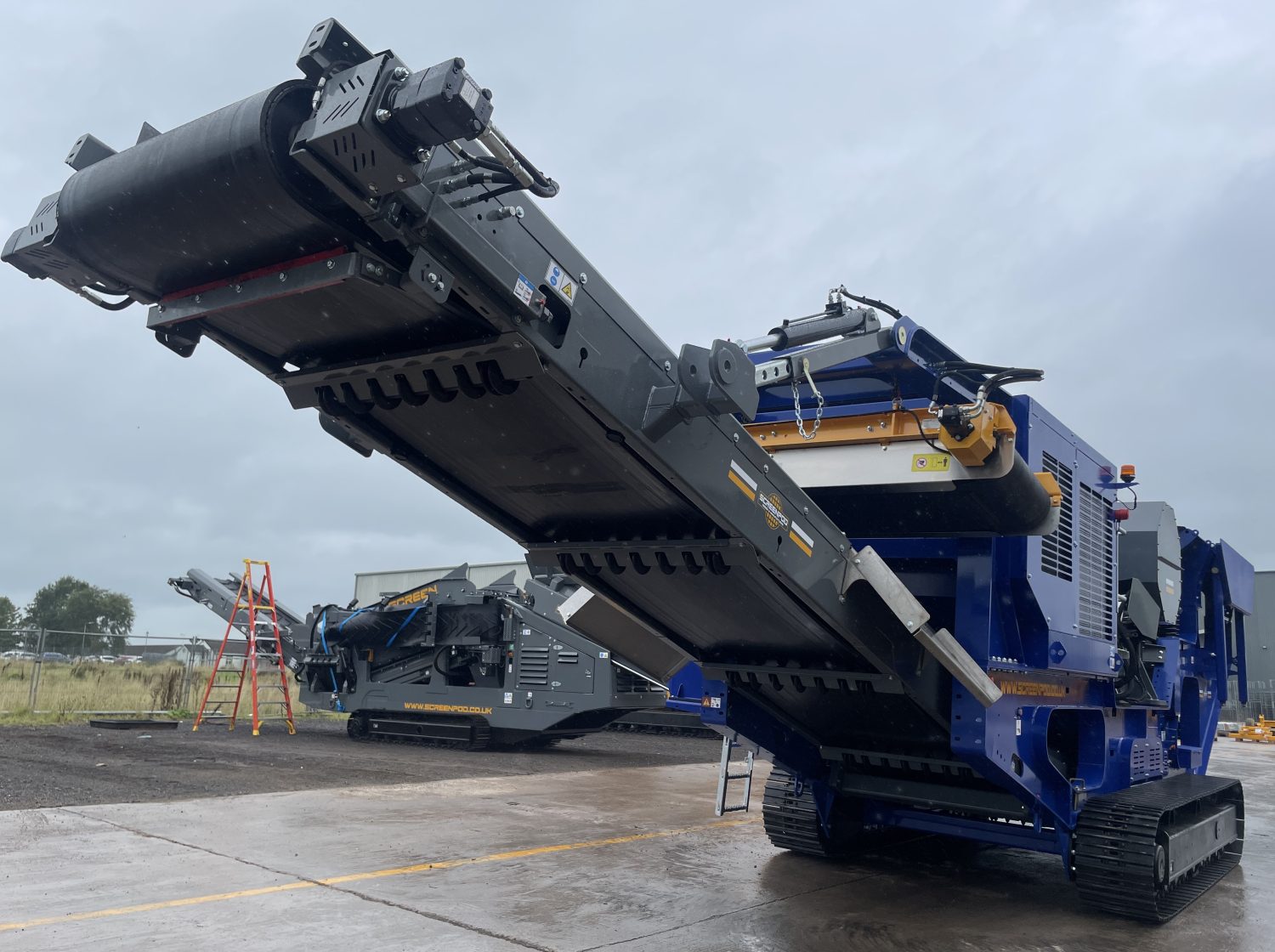

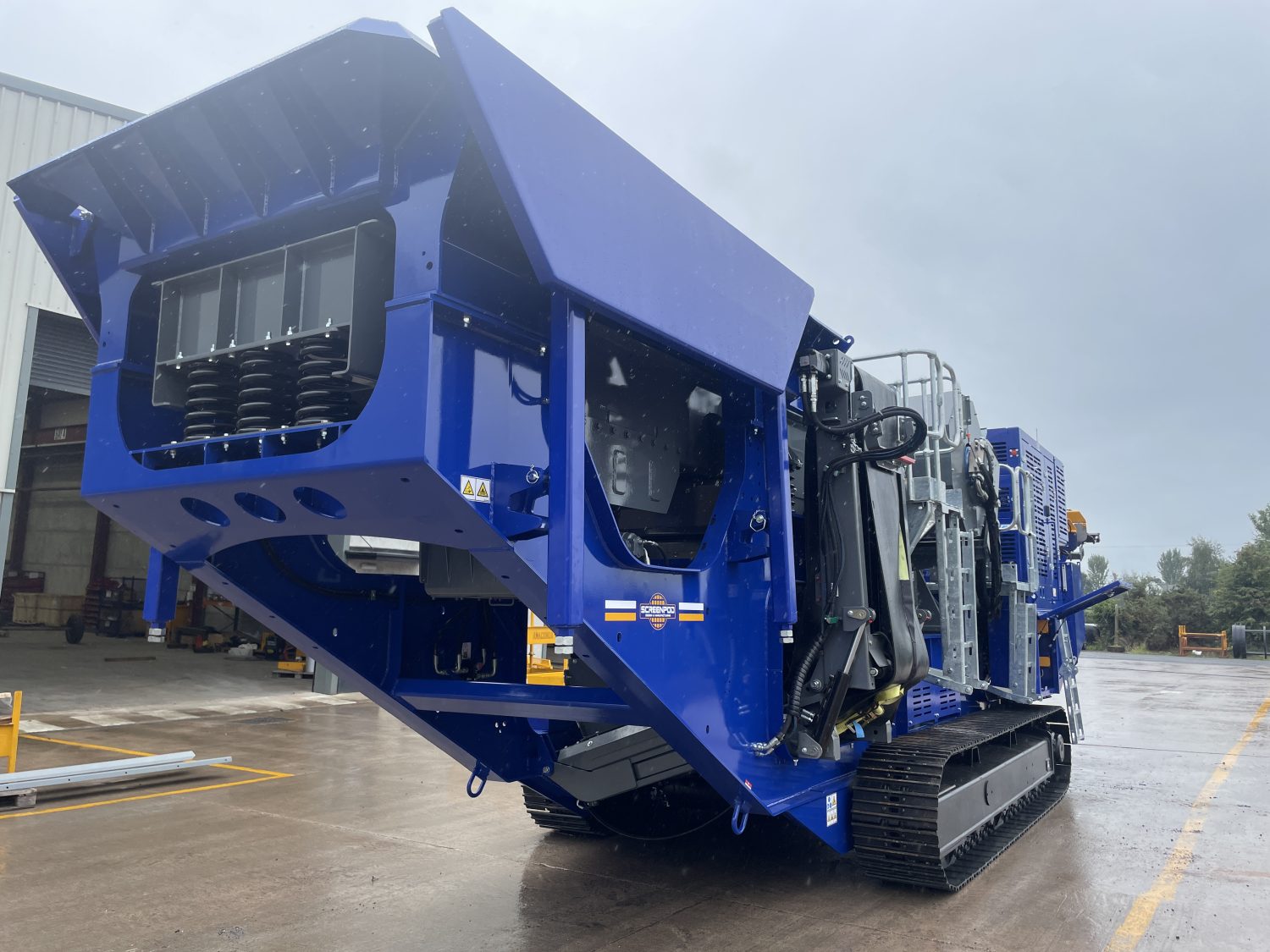

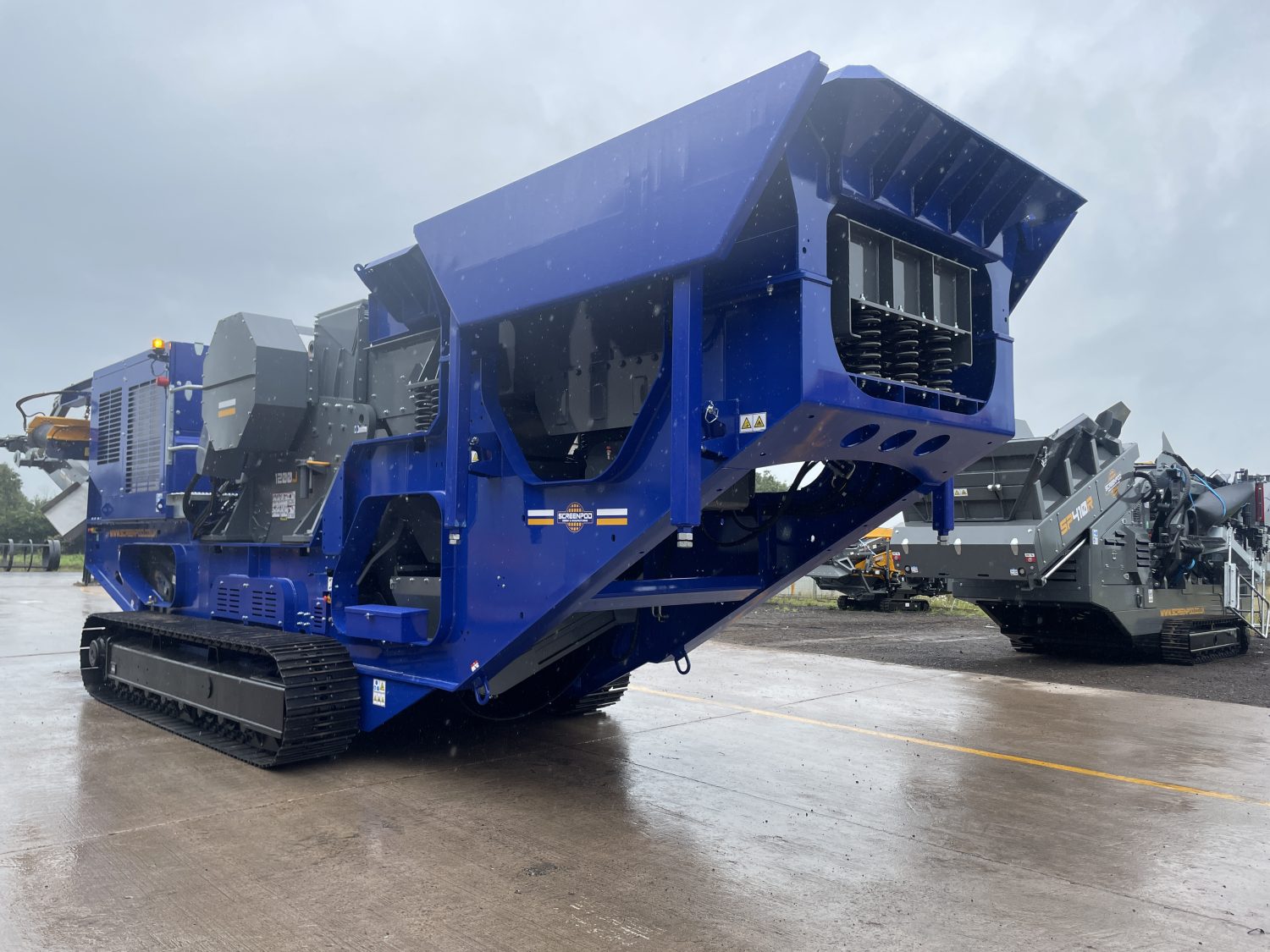

The machine is equipped with a 6.5m³ hopper, 1.1m wide variable-speed feeder with integrated screen deck, and a 1050mm main discharge conveyor with a 3m discharge height. Weighing approximately 45.3 tonnes, the 1200J provides a robust and mobile crushing solution for high-production applications.

Available for dry hire from PrecisionScreen, backed by our team for parts, service and technical support throughout the hire.

• 1100 x 700mm McLanahan jaw chamber
• 6.5m³ hopper capacity
• 50–190mm adjustable CSS range
• 1.1m wide variable-speed feeder
• Integrated 920mm screen deck
• 1050mm main discharge conveyor
• 3.0m main discharge height
• 650mm fines collection conveyor
• 750mm variable-speed magnet
• 530L diesel tank
• Tracked chassis
• Approx. operating weight: 45,350kg
