Nordmann T-1060 Tracked Jaw

Nordmann T-1060 Tracked Jaw Crusher

The Nordmann T-1060 Tracked Jaw Crusher has the ability to run on either mains or diesel power making the crusher a versatile option, suited equally to quarry, mining or recycling applications.

The T-1060 has a large feed opening of 1,000 x 600 mm (39.4 x 25.6”). It is driven by a 90 kW (121 hp) electric motor and uses a simple drawback tensioning system.

The main conveyor can be raised and lowered hydraulically for rebar clearance and will also be fitted with an overband magnet separator. The diesel engine is a six-cylinder CAT C7.1 225Kw which reaches the latest Stage V emissions standards using SCR and a DPF. Fuel burn while working can be as low as 8 litres an hour, ranging up to 12 litres when crushing harder rock types.

Nordmann T-1060 Tracked Jaw

FEATURES:

  • Reverse crush, jaw unblock feature
  • Large jaw ejector cylinder
  • Bolted mainframe providing strength and durability
  • 4.5m3 hydraulic folding, Hardox-lined hopper with 1000mm discharge conveyor
  • 1000x600mm single toggle jaw crusher
  • 90kW electric motor drive
  • Caterpillar C7.1 225kw engine
  • Weighing in at 32tonnes

Image Gallery

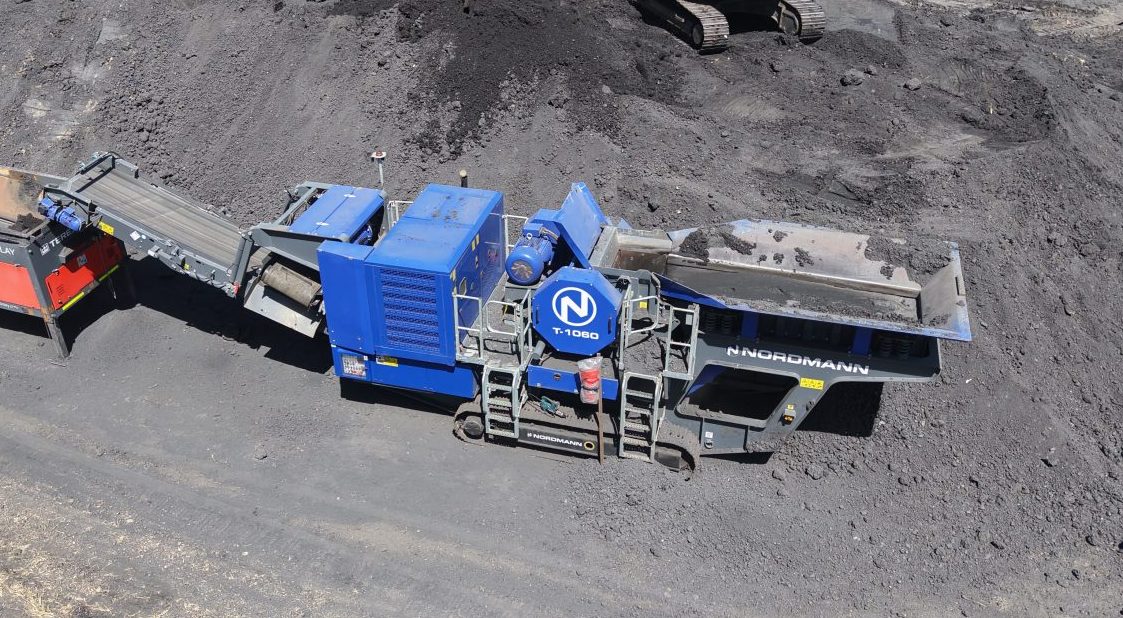

Nordmann T-1060 Tracked Jaw

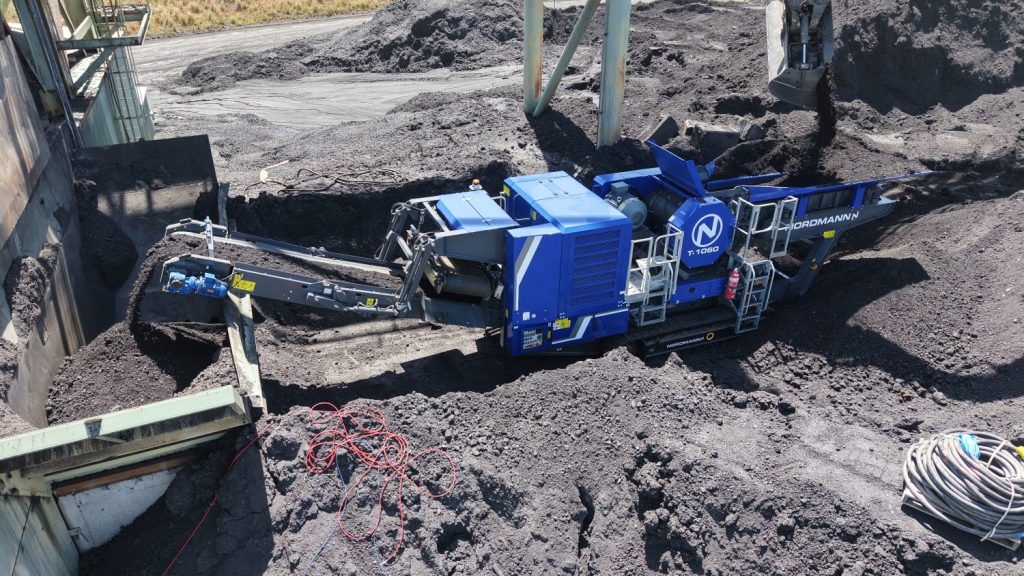

Nordmann T-1060 Tracked Jaw

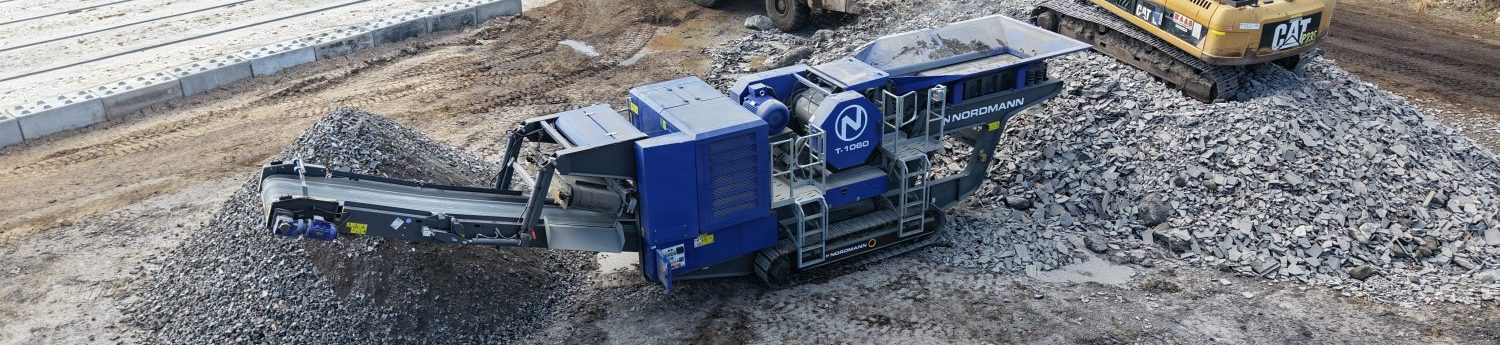

Nordmann T-1060 Tracked Jaw
